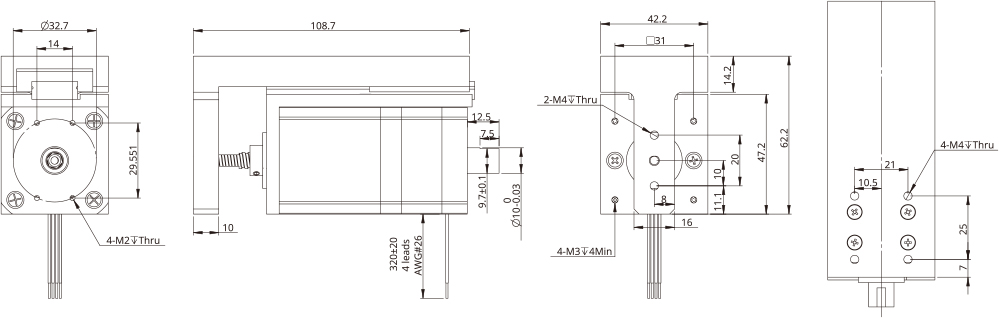

| 电机型号 | 电压(V) | 电流(A) | 电阻(Ω) | 电感(mH) | 引出线数 | 机身长度(mm) |
|---|---|---|---|---|---|---|
| 17E2110 | 3.8 | 1 | 3.8 | 5 | 4 | 34.1 |
| 17E2115 | 2.78 | 1.5 | 1.85 | 2.2 | 4 | 34.1 |
| 17E2212 | 4.56 | 1.2 | 3.8 | 8 | 4 | 48.1 |
| 17E2225 | 2.5 | 2.5 | 0.9 | 1.8 | 4 | 48.1 |

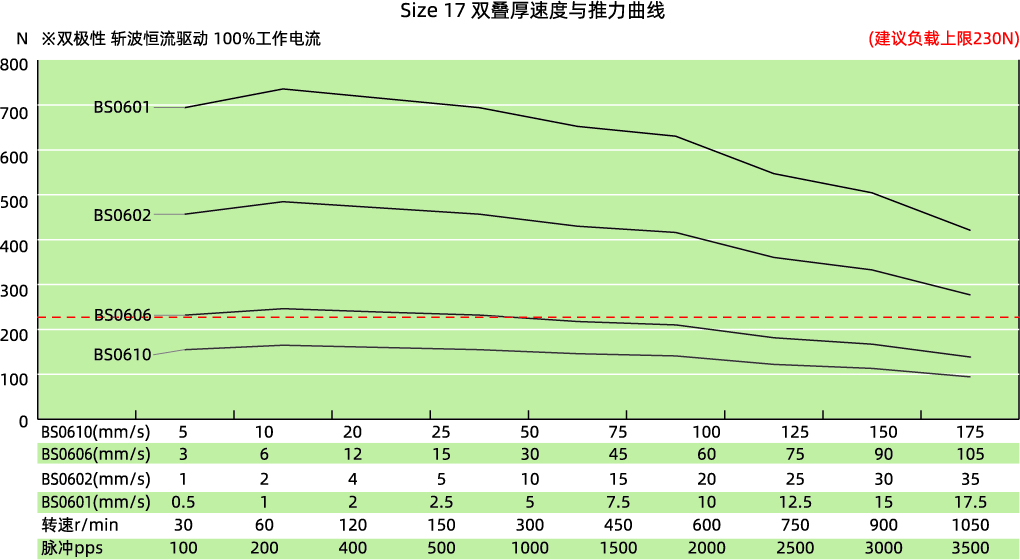

In a mobile environment, you can move left and right to see the contents (tables).
| 丝杆型号 | 0801 | 0802 | 0802.5 | 0805 | 0808 | 0810 | 0812 |
|---|---|---|---|---|---|---|---|
| 钢珠直径 | Ф0.8 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 |
| 螺纹条数 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| 螺纹旋向 | 右旋 | ||||||
| 丝杆轴底径 | Ф7.3 | Ф6.6 | Ф6.3 | Ф6.6 | Ф6.7 | Ф6.7 | Ф6.7 |
| 循环数 | 3.7×1 | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 1.6×2 |
| 轴、螺母材质 | SCM415H | ||||||
| 表面硬度 | HRC58~62 | ||||||
| 防锈处理 | 防锈油 | ||||||
| 精度等级 | C7 | ||||||
|

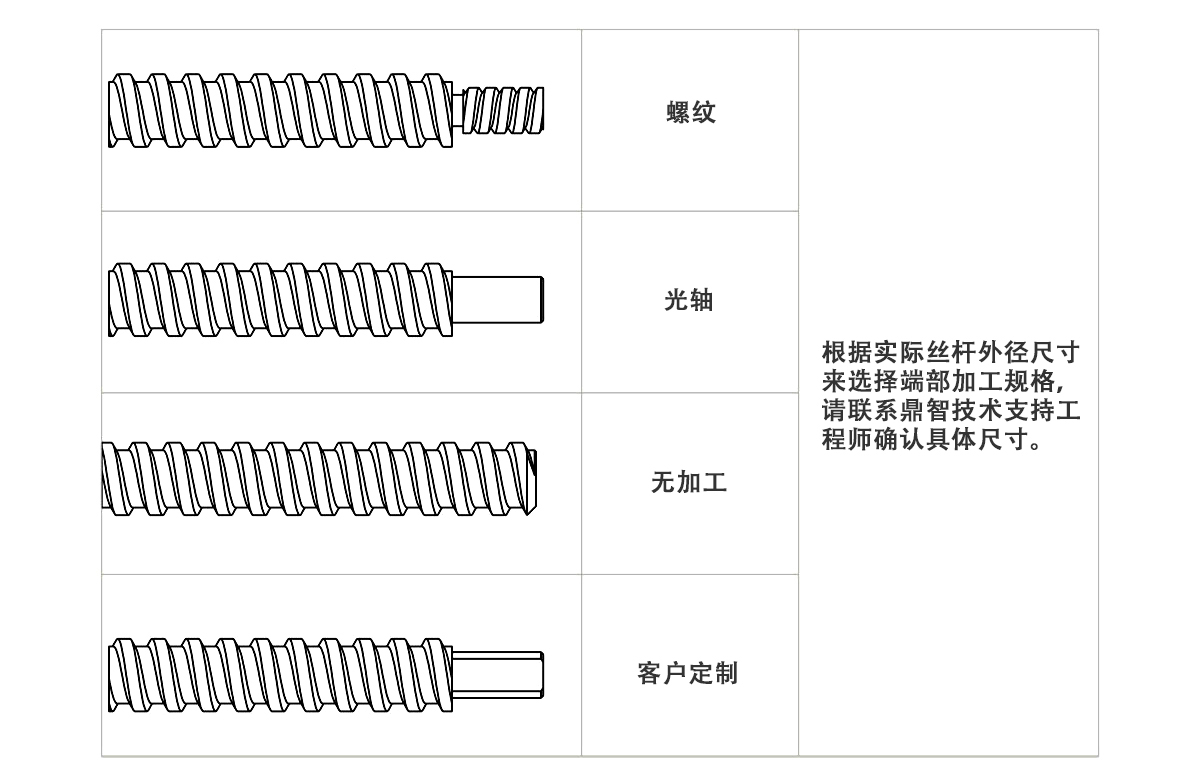

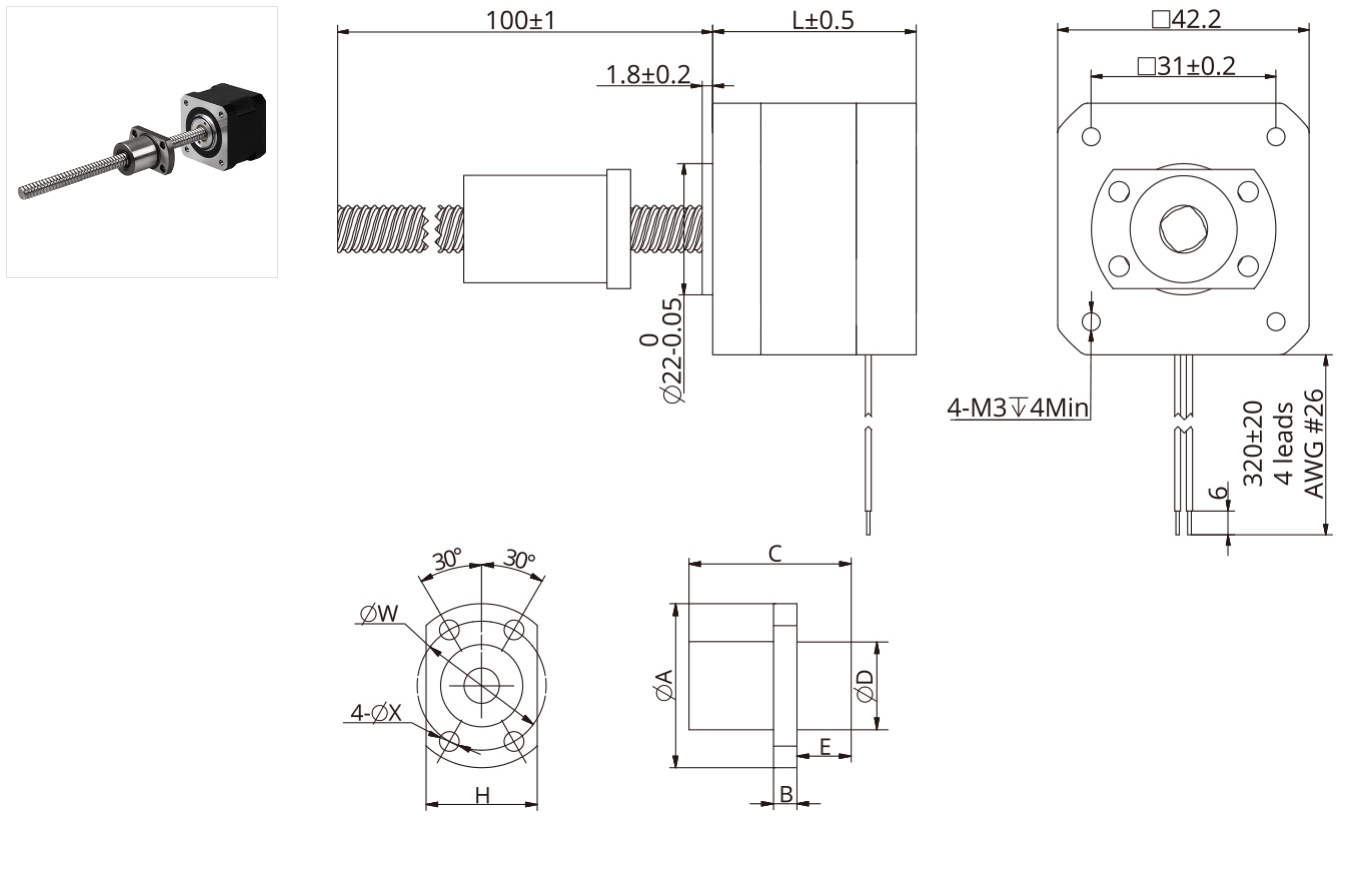

螺母 尺寸 |
A | B | C | D | H | W | X | E |
定位 精度 |
全跳动 |
轴向 间隙 |
额定 动负载(N) |
额定 静负载(N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0801 | 29 | 4 | 17 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 780 | 1650 | |
| BS0802 | 37 | 5 | 24 | 20 | 22 | 29 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 2400 | 4100 | |
| BS0802.5 | 29 | 4 | 16 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
| BS0805 | 31 | 4 | 28 | 18 | 20 | 25 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
| BS0808 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
| BS0810 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 7 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
| BS0812 | 31 | 4 | 24 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |

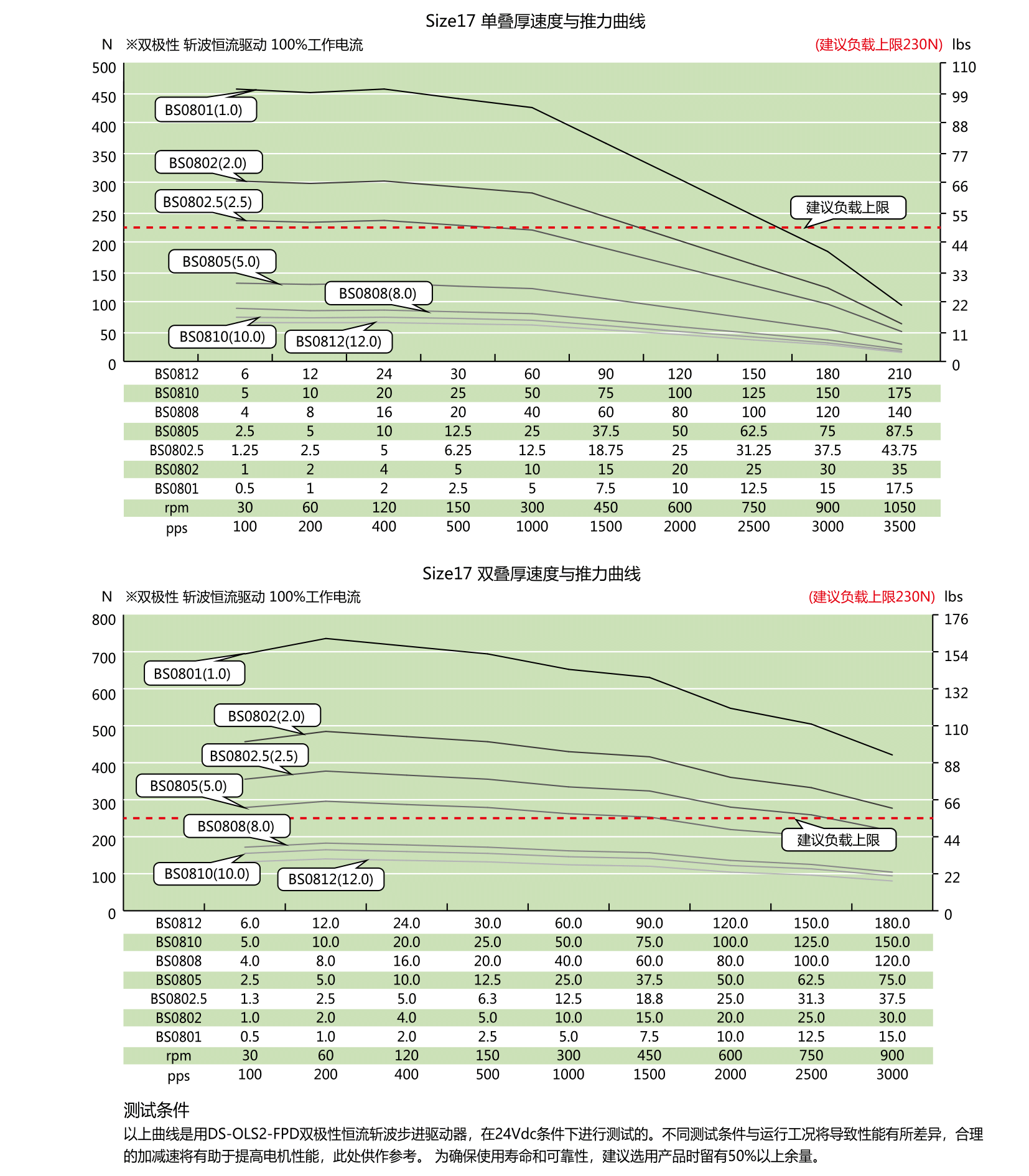

In a mobile environment, you can move left and right to see the contents (tables).

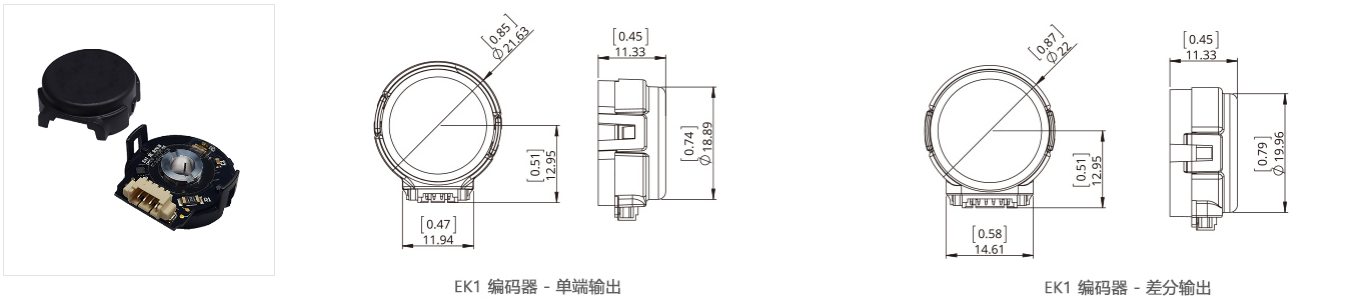

| 分辨率 [CPR] |
100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 | 400 | 500 | 1000 | 512 | 720 | 800 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 差分输出 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
In a mobile environment, you can move left and right to see the contents (tables).

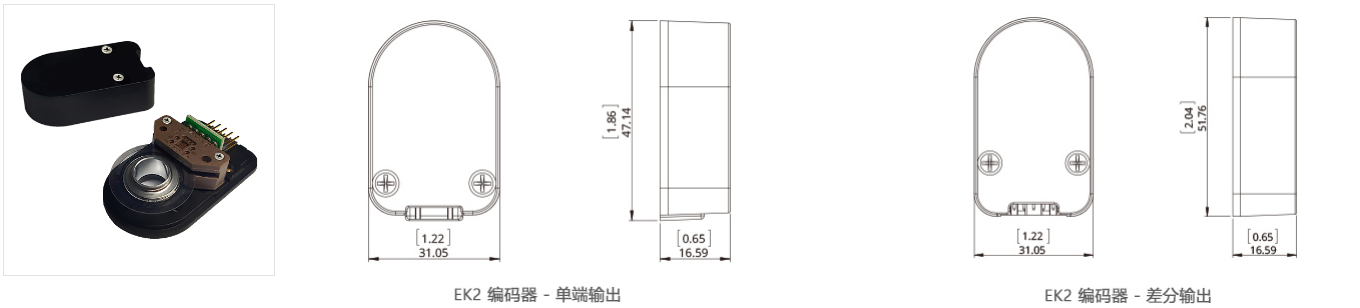

| 分辨率 [CPR] | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| 差分输出 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
In a mobile environment, you can move left and right to see the contents (tables).

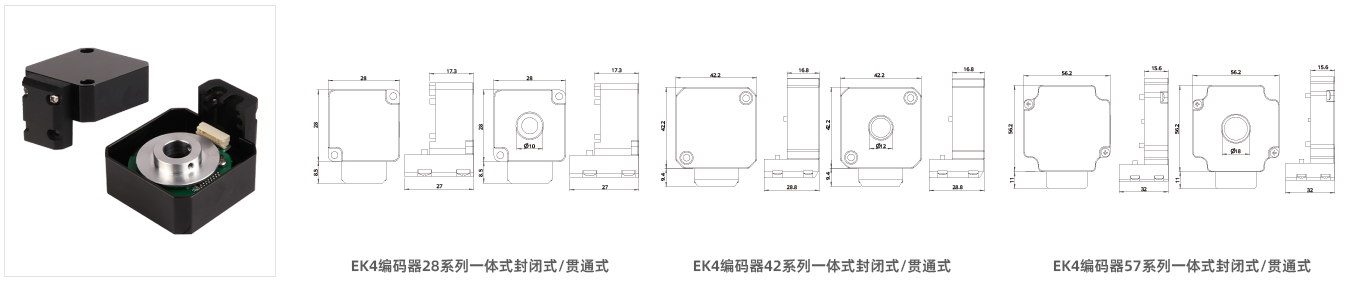

| 分辨率(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| 单端输出 | - | - | - | - | - | - | - | - | - |
| 差分输出 | - | - | C | - | - | - | - | - | - |
In a mobile environment, you can move left and right to see the contents (tables).

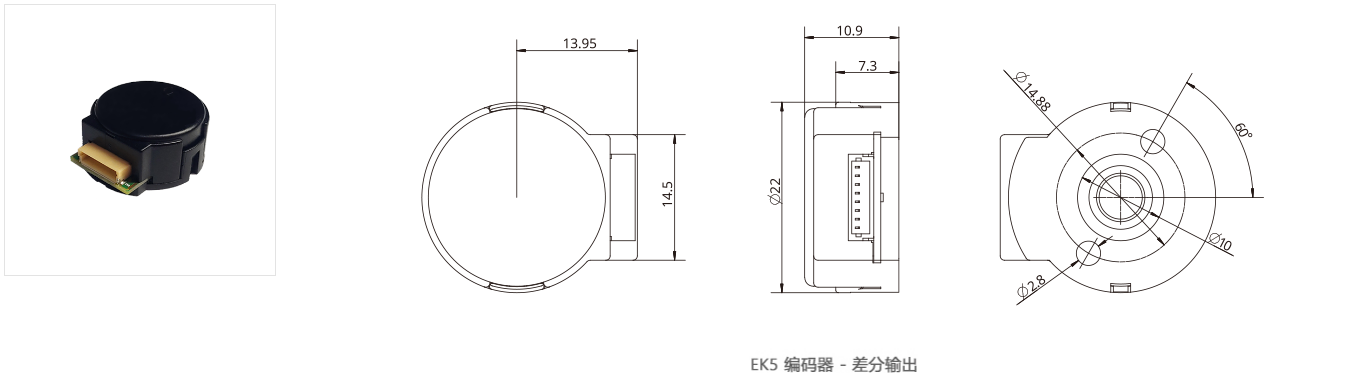

| 分辨率 [CPR] | 360 | 500 | 512 | 1000 | 1024 | 2000 | 2048 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| 差分输出 | A | B | C | D | E | F | G |
