In a mobile environment, you can move left and right to see the contents (tables).
| 电机 | 电压[V] | 电流[A] | 电阻[Ω] | 电感[mH] | 引线数量 | 机身长度[mm] |
|---|---|---|---|---|---|---|
| 23E2110 | 6.4 | 1 | 6.4 | 16.4 | 4 | 45 |
| 23E2120 | 3.2 | 2 | 1.75 | 4.1 | 4 | 45 |
| 23E2130 | 2.4 | 3 | 0.8 | 1.7 | 4 | 45 |
| 23E2210 | 10.8 | 1 | 11.5 | 32 | 4 | 65 |
| 23E2225 | 4.2 | 2.5 | 2 | 5.2 | 4 | 65 |
| 23E2240 | 2.8 | 4 | 0.7 | 2 | 4 | 65 |
In a mobile environment, you can move left and right to see the contents (tables).
| 丝杆直径 [inch] | 丝杆直径[mm] | 导程[inch] | 导程 [mm] | 导程代码 | 步长 @ 1.8° [mm] |
|---|---|---|---|---|---|
| 0.375 | 9.525 | 0.025 | 0.635 | A | 0.0032 |
| 0.375 | 9.525 | 0.005 | 1.27 | D | 0.0064 |
| 0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079 |
| 0.375 | 9.525 | 0.083 | 2.1167 | H | 0.0106 |
| 0.375 | 9.525 | 0.1 | 2.54 | K | 0.0127 |
| 0.375 | 9.525 | 0.125 | 3.175 | L | 0.0159 |
| 0.375 | 9.525 | 0.167 | 4.2333 | P | 0.0212 |
| 0.375 | 9.525 | 0.2 | 5.08 | R | 0.0254 |
| 0.375 | 9.525 | 0.25 | 6.35 | S | 0.0318 |
| 0.375 | 9.525 | 0.375 | 9.525 | V | 0.0476 |
| 0.375 | 9.525 | 0.384 | 9.7536 | W | 0.0488 |
| 0.375 | 9.525 | 0.4 | 10.16 | X | 0.0508 |
| 0.375 | 9.525 | 0.5 | 12.7 | Y | 0.0635 |
| 0.375 | 9.525 | 1 | 25.4 | Z | 0.127 |
| 0.394 | 10 | 0.079 | 2 | G | 0.01 |
| 0.394 | 10 | 0.3937 | 10 | C | 0.05 |
| 0.394 | 10 | 0.7874 | 20 | I | 0.1 |
In a mobile environment, you can move left and right to see the contents (tables).
|

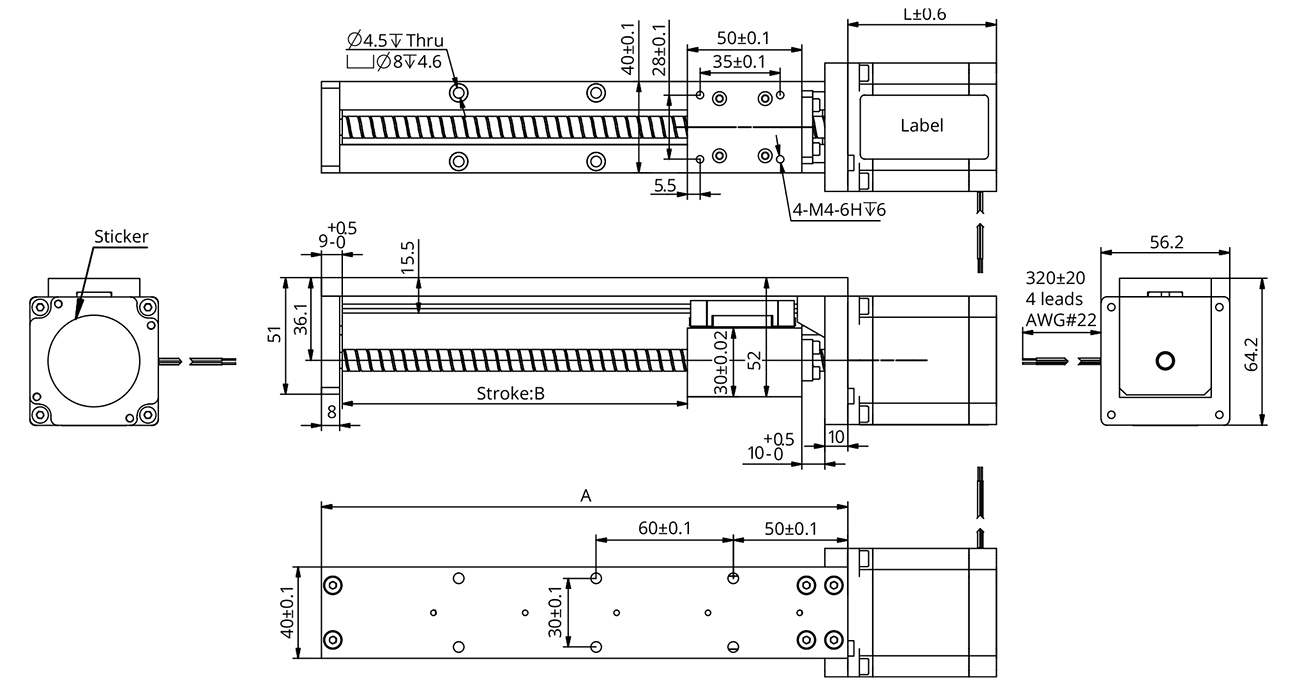

尺寸A (mm) |
行程B (mm) |
|---|---|
| 130 | 50 |
| 180 | 100 |
| 230 | 150 |
| 280 | 200 |
| 330 | 250 |
| 380 | 300 |
| 430 | 350 |
| 480 | 400 |
| 530 | 450 |
| 580 | 500 |
| 630 | 550 |
| 680 | 600 |
更多行程规格，可联系我司销售工程师
